Temperature sensor IC

VS PART NUMBER: VS3111TS

Applications:

  • Die Temperature monitoring
  • Under and over temperature monitoring
  • Precise temperature measurement applications and instrumentation
ShaP

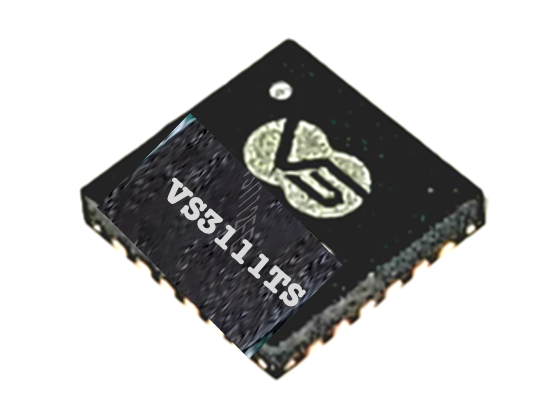

VS3111TS IC is a highly accurate temperature sensor integrated circuit designed for monitoring the temperature of silicon chip dies. It features a sensor node that continuously measures both temperature and voltage, communicating this data in real time to a central controller via a digital interface. The IC includes a dedicated enable signal for optimized power management, allowing the sensor to be powered on or off as needed. Its parallel communication interface, using addressable 8-bit digital I/O ports, facilitates access to configuration registers, enabling calibration control and observation of supply voltage and temperature. Furthermore, the IC is equipped with parallel calibration data ports for direct connection to OTP/NVM memory, supporting seamless calibration input. The sensor's trimming options enhance the accuracy of its temperature probes. Built on an ultra-low power delta-sigma modulator, this IC offers exceptional noise performance and high precision, eliminating inherent offset and gain errors by incorporating compensation directly into the modulation loop.

Feature

Features::

  • 16b Digital Temperature Resolution
  • 1Ksps Maximum data rate
  • 125uA Current Consumption
  • Excellent temperature accuracy +/- 0.5°C after single room temperature trim
  • Ultra-low leakage power
ShaP
Flow Chart
Shap Shap Shap Shap Shap Shap Shap Shap

Device & EVB Ordering Information

Part Number Description Package Status Order
VS3111TSQ Temperature Sensor IC QFN32
Available
Order Now
VS3111TST Temperature Sensor IC TQFP32
Available
Order Now
VS3111TS-EVB EVB for VS3111TS IC N/A
Available
Order Now
Part Number VS3111TSQ
Description Temperature Sensor IC
Package QFN32
Status
Available
Order Now
Part Number VS3111TSQ
Description Temperature Sensor IC
Package QFN32
Status
Available
Order Now
Part Number VS3111TSQ
Description Temperature Sensor IC
Package QFN32
Status
Available
Order Now
Shap

Evaluation Board

Our temperature sensor evaluation board is now available for testing and development, offering engineers and product designers a comprehensive platform to evaluate the precision and performance of our cutting-edge analog signal chain technology. This board is designed for seamless integration and is optimized for applications requiring high accuracy. Equipped with our advanced chip, it allows for real-world testing in various industrial and consumer environments. To order your evaluation board, please visit our website or contact our sales team for more information.
