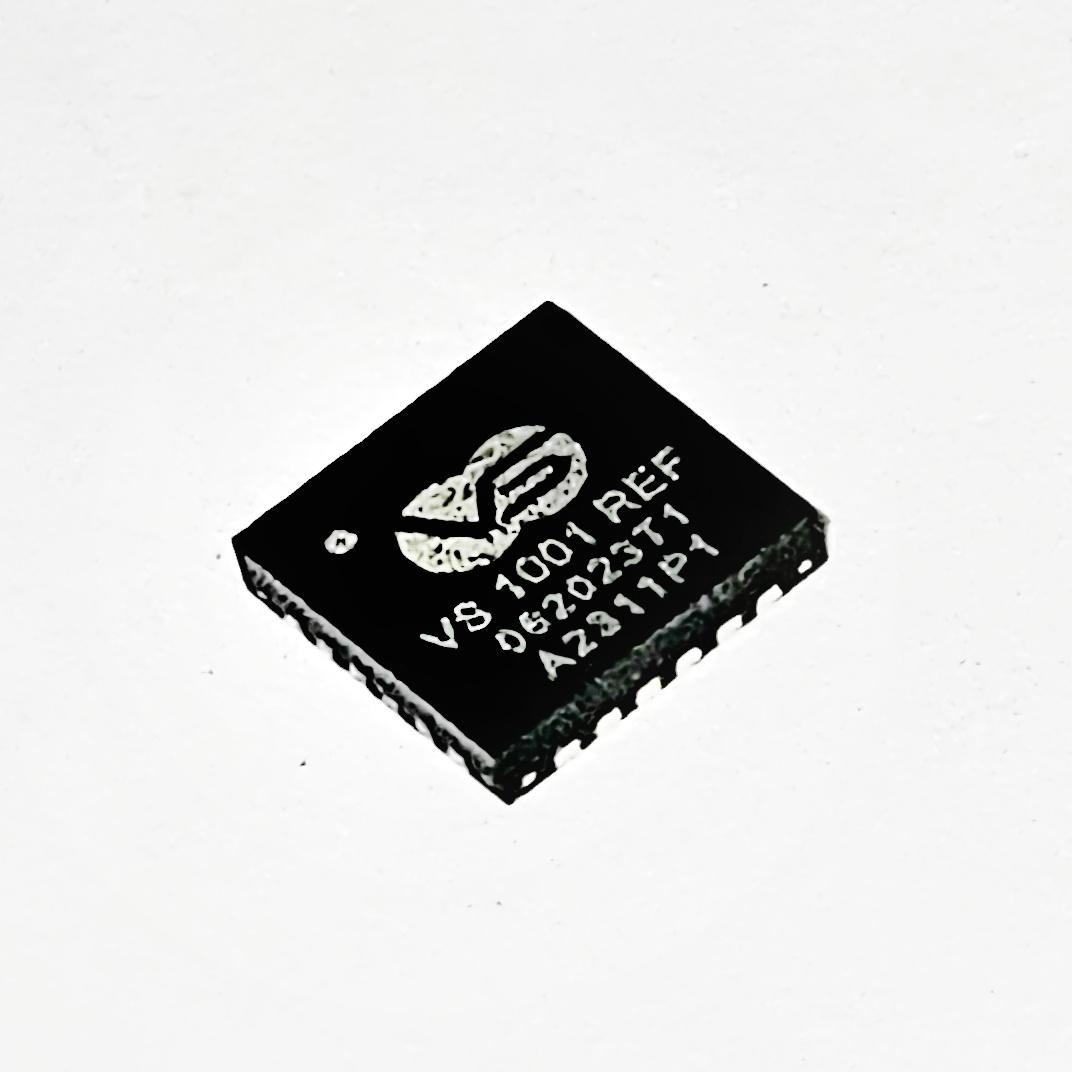

Low-drift Voltage Reference IC
VS PART NUMBER: VS1001REF
Applications:
- Measurement Equipment
- Analog Modules for PLCs
- Precision Data Acquisition Systems
- Medical applications
VS1001REF is a precision reference IC comprising two key components: a precision reference voltage generator and a reference output buffer. It provides an integrated low-drift, programmable, and trimmable voltage reference, with the added flexibility of an external reference input option for systems requiring low-drive external reference voltages. Additionally, the VS1001 allows for customizable noise performance through flexible external band-limiting capacitors, enabling users to select capacitor values based on specific system requirements.
Features::
- Programmable Reference 2.5V, 2.7V, 4.096V
- Voltage accuracy +/- 0.1%
- Excellent Temperature Drift Performance <6ppm/C
- Start-up time 0.2ms for 1% accuracy
- PSRR 88dB @60Hz
Device & EVB Ordering Information
| Part Number | Description | Package | Status | Order |
|---|---|---|---|---|
| VS1001REFQ | Low-drift Voltage Reference IC | QFN32 | Available |
Order Now |
| VS1001REFT | Low-drift Voltage Reference IC | TQFP32 | Available |
Order Now |
| VS1001REF-EVB | EVB for VS1001REF IC | N/A | Available |
Order Now |
| Part Number | VS1001REF |
|---|---|
| Description | Low-drift Voltage Reference IC |
| Package | QFN32 |
| Status | Available |
| Order Now |
| Part Number | VS1001REFQ |
|---|---|
| Description | Low-drift Voltage Reference IC |
| Package | QFN32 |
| Status | Available |
| Order Now |
| Part Number | VS1001REFQ |
|---|---|
| Description | Low-drift Voltage Reference IC |
| Package | TQFP32 |
| Status | Available |
| Order Now |
Evaluation Board
Our Low-drift Voltage Reference IC evaluation board is now available for testing and development, offering engineers and product designers a comprehensive platform to evaluate the precision and performance of our cutting-edge analog signal chain technology. This board is designed for seamless integration and is optimized for applications requiring high accuracy. Equipped with our advanced chip, it allows for real-world testing in various industrial and consumer environments. To order your evaluation board, please visit our website or contact our sales team for more information.
Technical Documentation
Datasheet
EVB User Manual
EVB Design Data
Device Qualification Report
