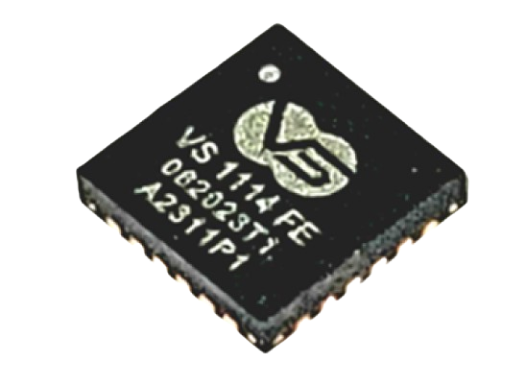

High Precision Weighing Scale SOC with integrated MCU

VS PART NUMBER: VS1114FESOC

Applications:

Strain Gauge applications
Pressure measurement
Bridge Sensor Interface
Weighing scale applications

VS1114FESOC with integrated MCU offers a high-performance solution for modern weighing systems, delivering unparalleled precision and reliability in weight measurement. Engineered with cutting-edge analog signal chain technology, this IC ensures accurate and stable data conversion from load cells, making it ideal for industrial, retail, and consumer applications.

Features::

MCU integrated Low power AFE having 24b ADC and PGA with internal oscillator
PGA with Gain)1X, 2, 4, 8, 16, 32, 64 and 128X
Output Data Rates from 9.4SPS To 19.2kSPS
High CMRR: -110 dB
Offset and Gain calibration
Low Power Internal Oscillator
SPI Compatible Interface

Device & EVB Ordering Information

Part Number	Description	Package	Status	Order
VS1114SOCQ	High Precision Weighing Scale Asic with integrated MCU	QFN64	Available 2025	Order Now
VS1114SOCT	High Precision Weighing Scale Asic with intehgrated MCU	TQFP64	Available 2025	Order Now
VS1114SOC-EVB	EVB for VS1114SOC IC	N/A	Available 2025	Order Now

Part Number	VS1114SOCQ
Description	High Precision Weighing Scale Asic with integrated MCU
Package	QFN64
Status	Available 2025
Order Now

Part Number	VS1114SOCQ
Description	High Precision Weighing Scale Asic with integrated MCU
Package	QFN64
Status	Available 2025
Order Now

Part Number	VS1114SOC-EVB
Description	EVB for High Precision Weighing Scale Asic
Package	N/A
Status	Available 2025
Order Now

Evaluation Board

Our weighing scale SOC chip evaluation board is available for testing and development, offering engineers and product designers a comprehensive platform to evaluate the precision and performance of our cutting-edge analog signal chain technology. This board is designed for seamless integration and is optimized for applications requiring high accuracy in weight measurement. Equipped with our advanced chip, it allows for real-world testing in various industrial and consumer environments. To order your evaluation board, please visit our website or contact our sales team for more information.
